Texas Elite Basketball Court
This 12.646 × 7.599 m one-hoop basketball court in Texas uses a blue main surface, an orange key, exact custom white basketball lines, and Knicks-inspired artwork on modular Swish Elite tiles. Its lower-right cutout follows the available installation space while preserving the approved playing geometry.

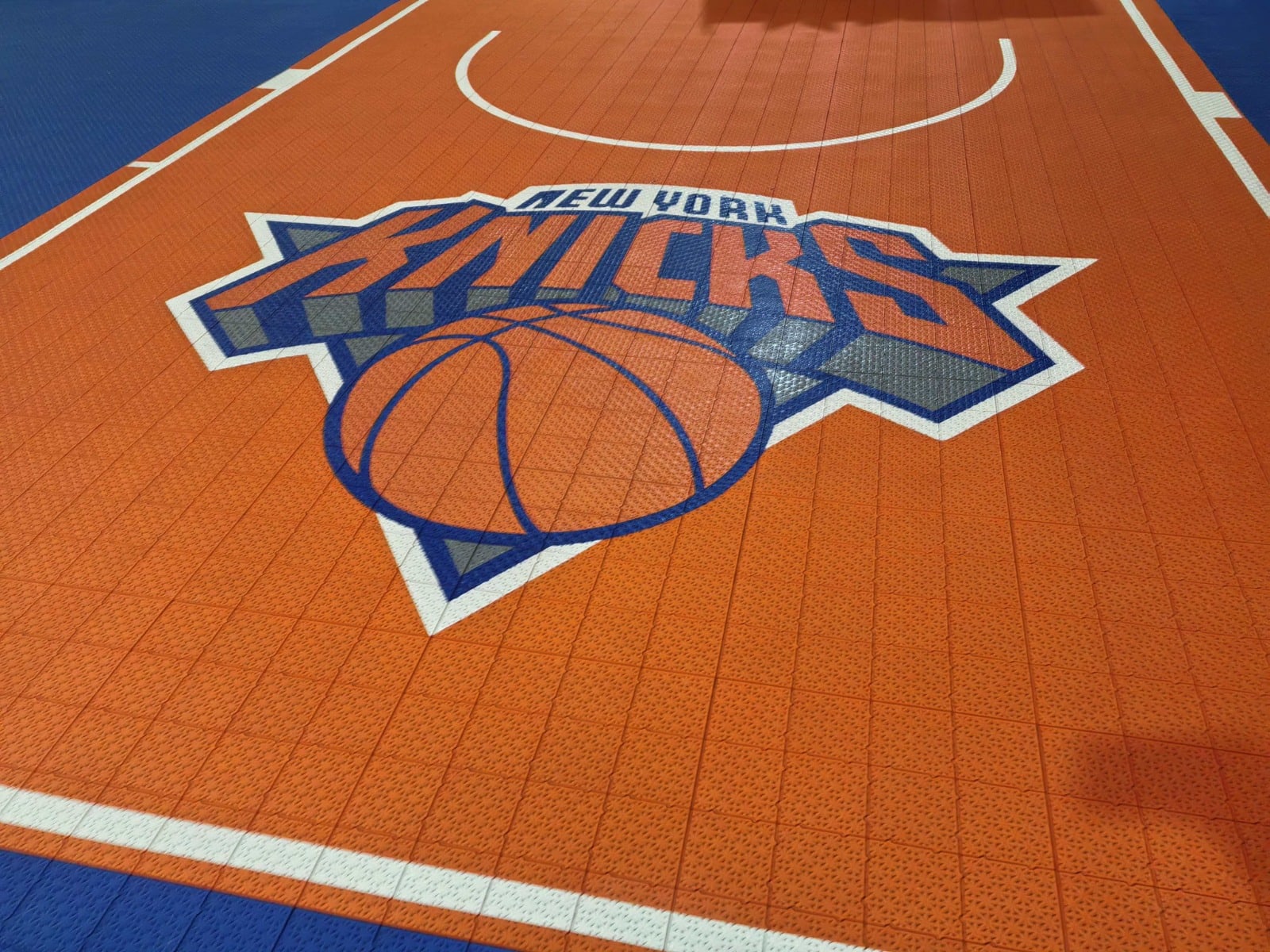

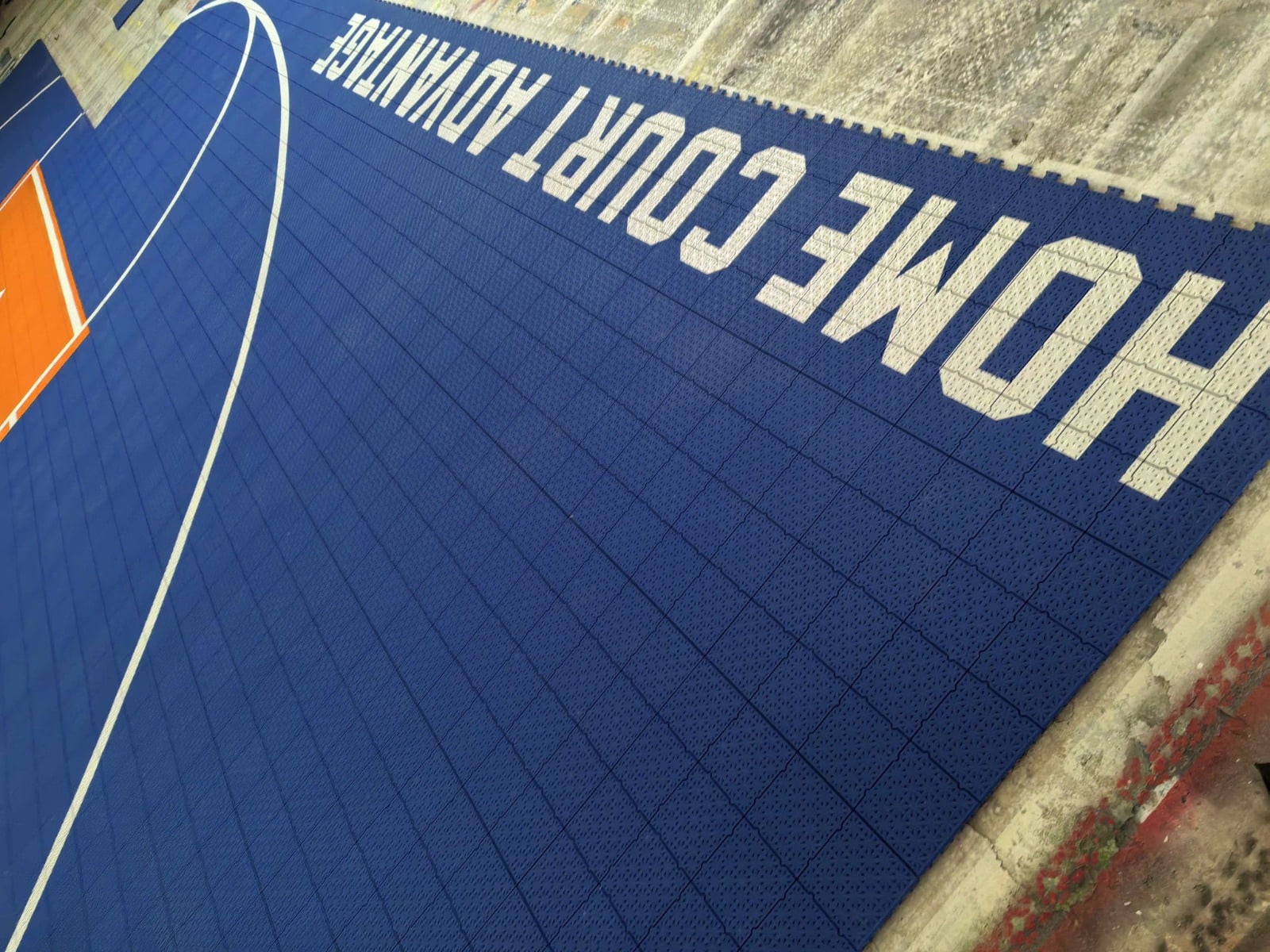

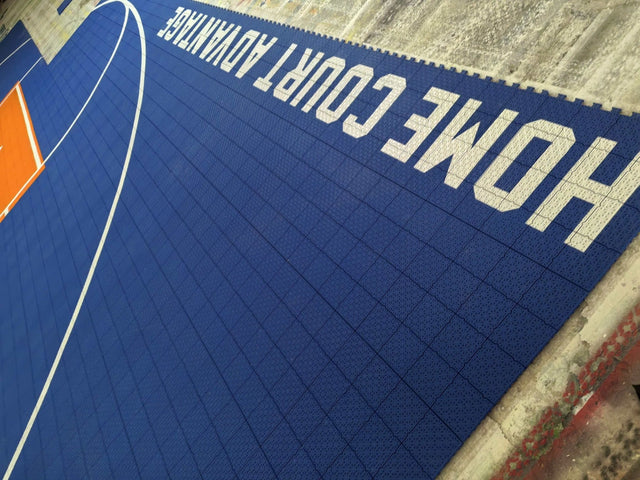

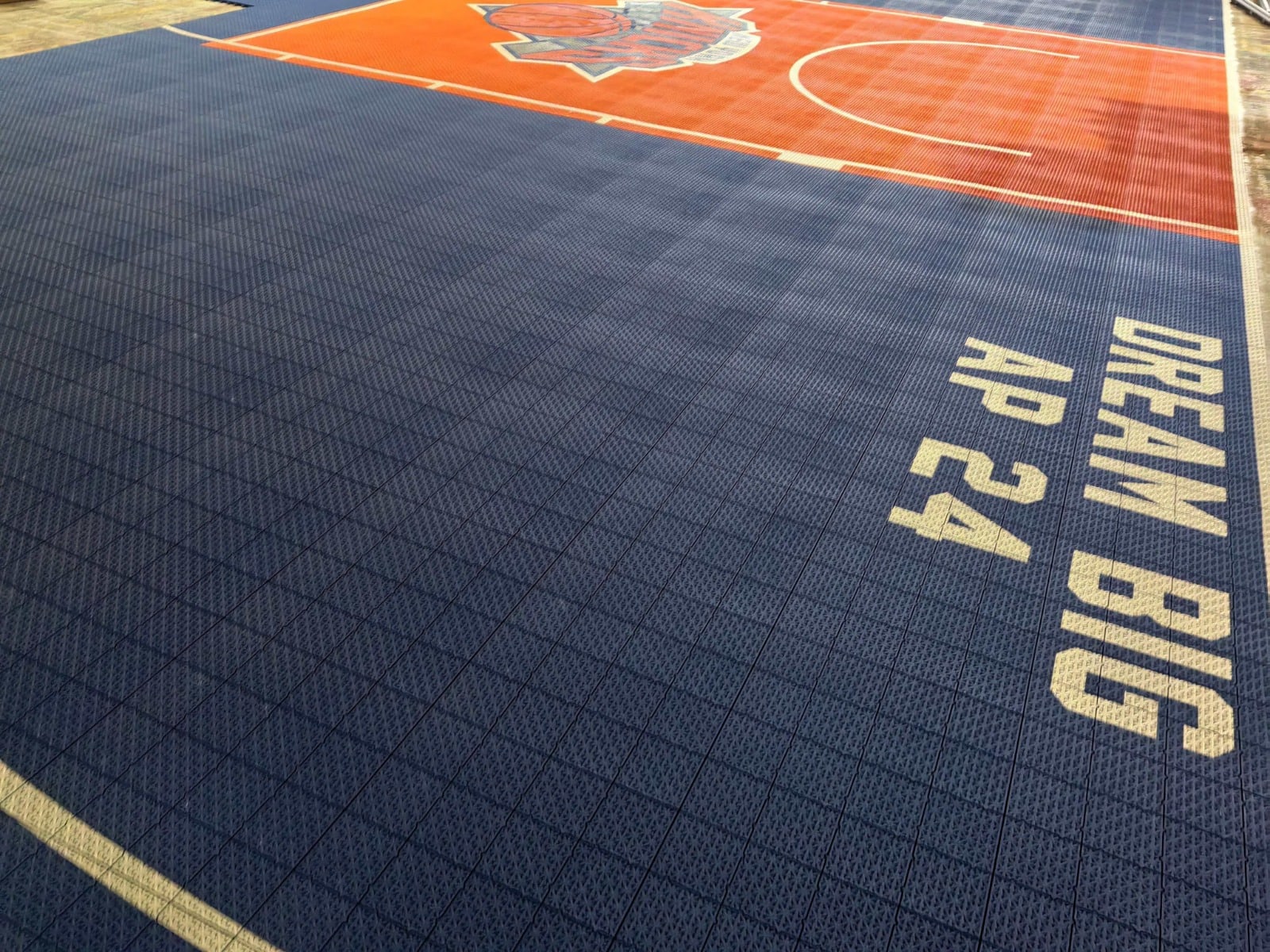

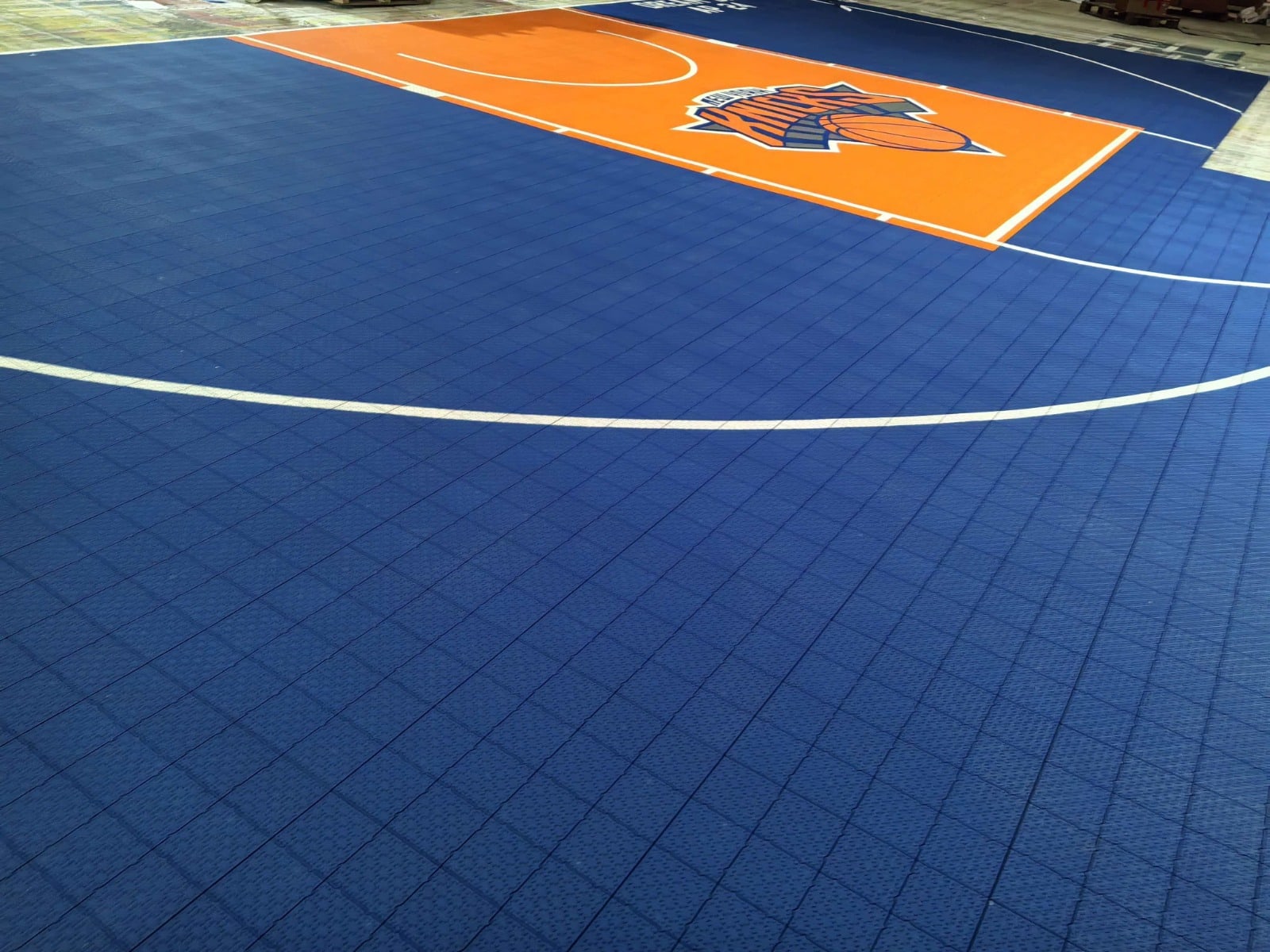

The gallery shows the completed tile surface, center artwork, dual basketball arcs, custom text graphics, and irregular court shape. The perimeter edges have not yet been added in these photos.
Court Details
Dimensions and design specifications for this court.

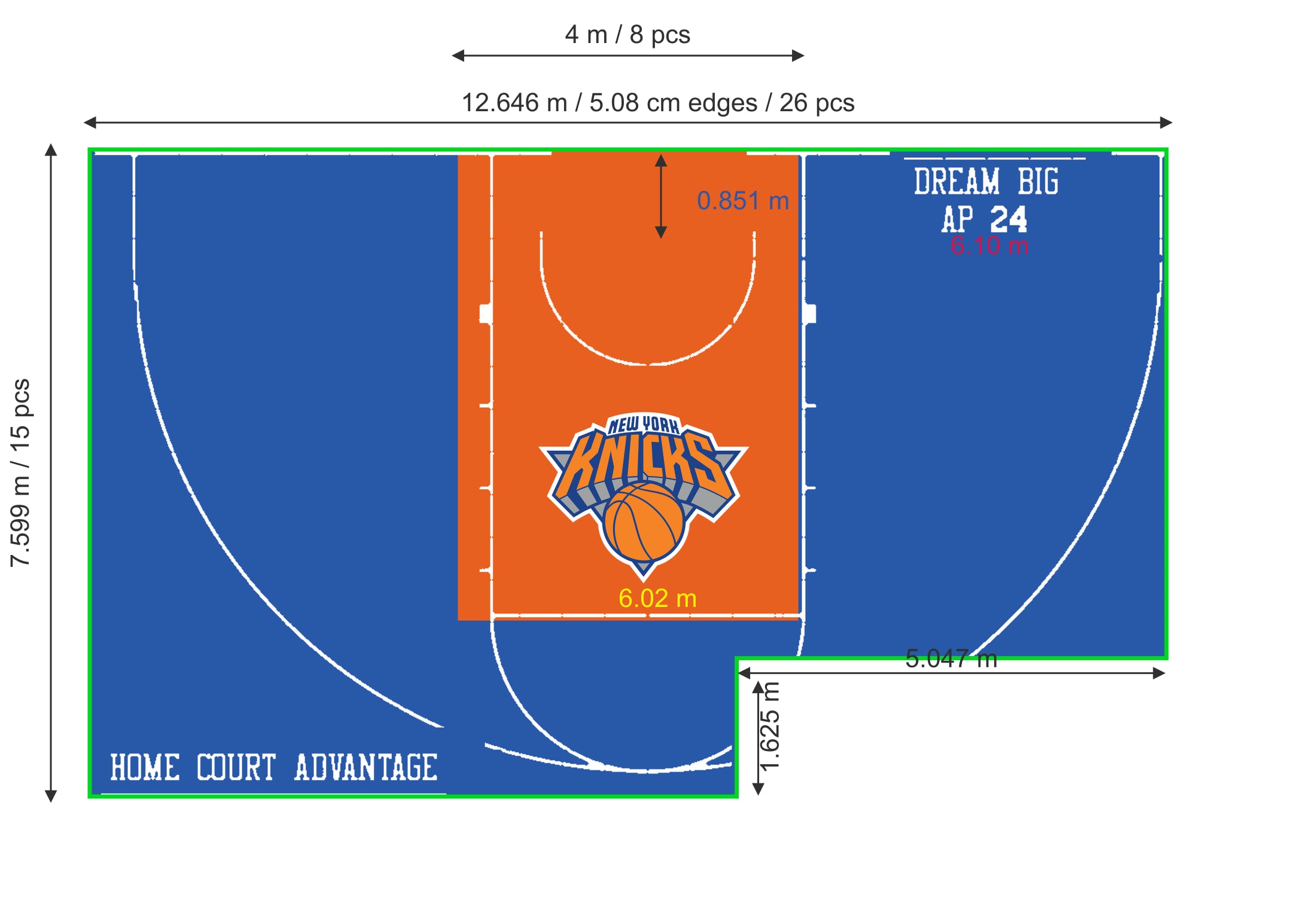

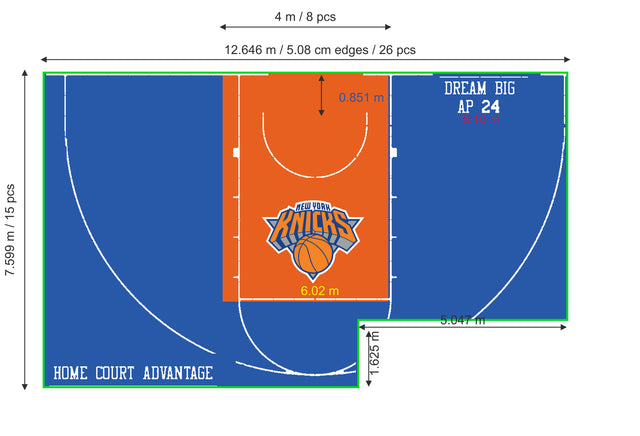

Court dimensions
- Total court size
- 12.6462 m wide × 7.5987 m long
- Playing surface
- 12.6462 m wide × 7.5987 m long
- Total area
- 87.89 m²
- Court cutout
- 1.6246 m wide × 5.0475 m deep (top right)
Court layout
- Sports
- Basketball
- Hoop setup
- 1 hoop
- Edge ramps
- All four sides
- Custom features
- Dual custom basketball arcs, a lower-right court cutout, New York Knicks-inspired center artwork, DREAM BIG AP 24 and HOME COURT ADVANTAGE graphics, and white edge ramps on all four sides.
Court colors
- Main court area#2858A8
- Key#E86020
- Court lines#FFFFFF
- Edges#FFFFFF
Tile Series
- Series
- Elite Tiles
- Tile Size
- 30.5 × 30.5 × 1.9 cm
- Total Tiles
- 940
