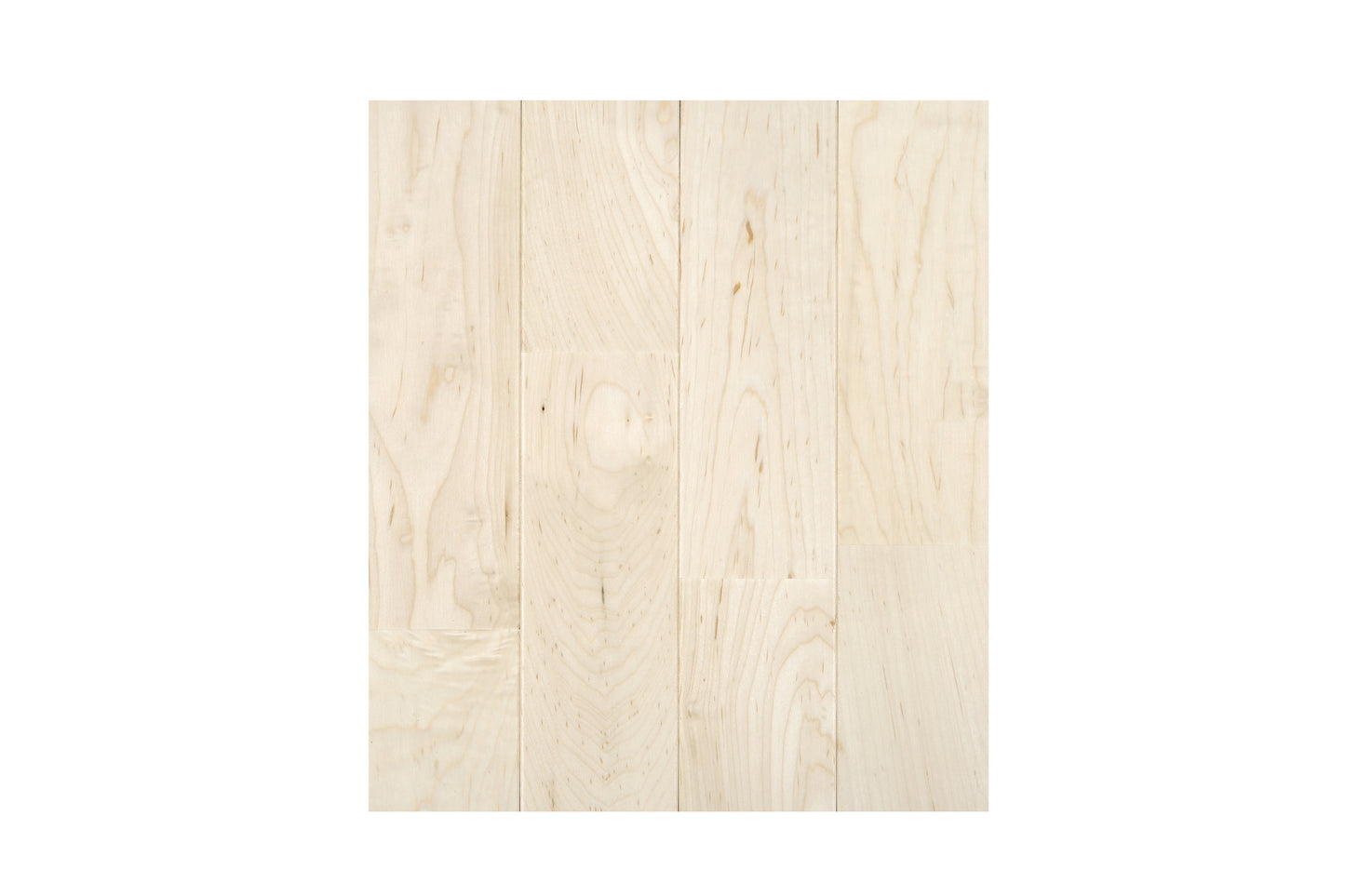

L8 Hardwood Flooring

Description

Our L8 portable wood floor system is designed for indoor venues that require a professional modular sports flooring solution with reliable performance, fast installation, and easy relocation. This series features a 22 mm grade A solid maple wood panel, a 12 mm supporting sub-floor layer, a single-layer 30 x 50 mm pine LVL sleeper, and an 18 mm shock-absorbing pad in a pre-assembled structure. In addition, the modular design with a locking system allows for convenient installation, dismantling, relocation, and maintenance, making the L8 series suitable for professional basketball, table tennis, badminton courts, stage floors, and similar indoor applications.

Benefits

• Professional Indoor Sports Flooring: The L8 series is developed for indoor venues that need a modular wood flooring system suitable for professional basketball and other sports applications.
• Reliable Shock Absorption: With an impact absorption rate of ≥40% and an 18 mm shock-absorbing pad, the L8 system is designed to support sports use.
• High Ball Rebound: A ball rebound rate of ≥90% helps provide a responsive playing surface for sports activities.
• Controlled Surface Performance: The system offers a standard vertical deformation of ≥1.5 mm and a coefficient of sliding friction of 0.4~0.6.
• Fast Installation and Relocation: The modular pre-assembled structure with a locking system enables quick installation, dismantling, and reuse when needed.
• Easy Maintenance: The finish coat material uses special paint for sports wood flooring, helping keep the surface suitable for regular indoor use.
• Low-Emission Materials: The L8 system is listed with E1 grade formaldehyde emission, benzene emission of ≤10 µg/m3, and toluene and xylene emissions of ≤20 µg/m3.
• Versatile Applications: This series is suitable for professional basketball, table tennis and badminton courts, stage floors, and similar venues.
• Long Service Life: According to the provided technical information, the L8 series has a service life of 10 years.
• Product Warranty: The provided specification lists a product quality warranty of 2 years.

Technical Info

• Panel: 22 mm grade A solid maple wood panel
• Sub-Floor Layer: 12 mm supporting layer
• Sleeper Structure: Single-layer 30 x 50 mm pine LVL sleeper
• Shock-Absorbing Pad: 18 mm
• Unit Specification: 1800 x 917 x 82 mm
• Impact Absorption Rate: ≥40%
• Ball Rebound Rate: ≥90%
• Standard Vertical Deformation: ≥1.5 mm
• Coefficient of Sliding Friction: 0.4~0.6
• Formaldehyde Emission: E1 grade
• Benzene Emission: ≤10 µg/m3
• Toluene Emission: ≤20 µg/m3
• Xylene Emission: ≤20 µg/m3
• Finish Coat Material: Special paint for sports wood flooring
• Applicable Venues: Professional basketball, table tennis and badminton courts, stage floors, etc.
• Service Life: 10 years
• Product Quality Warranty: 2 years
