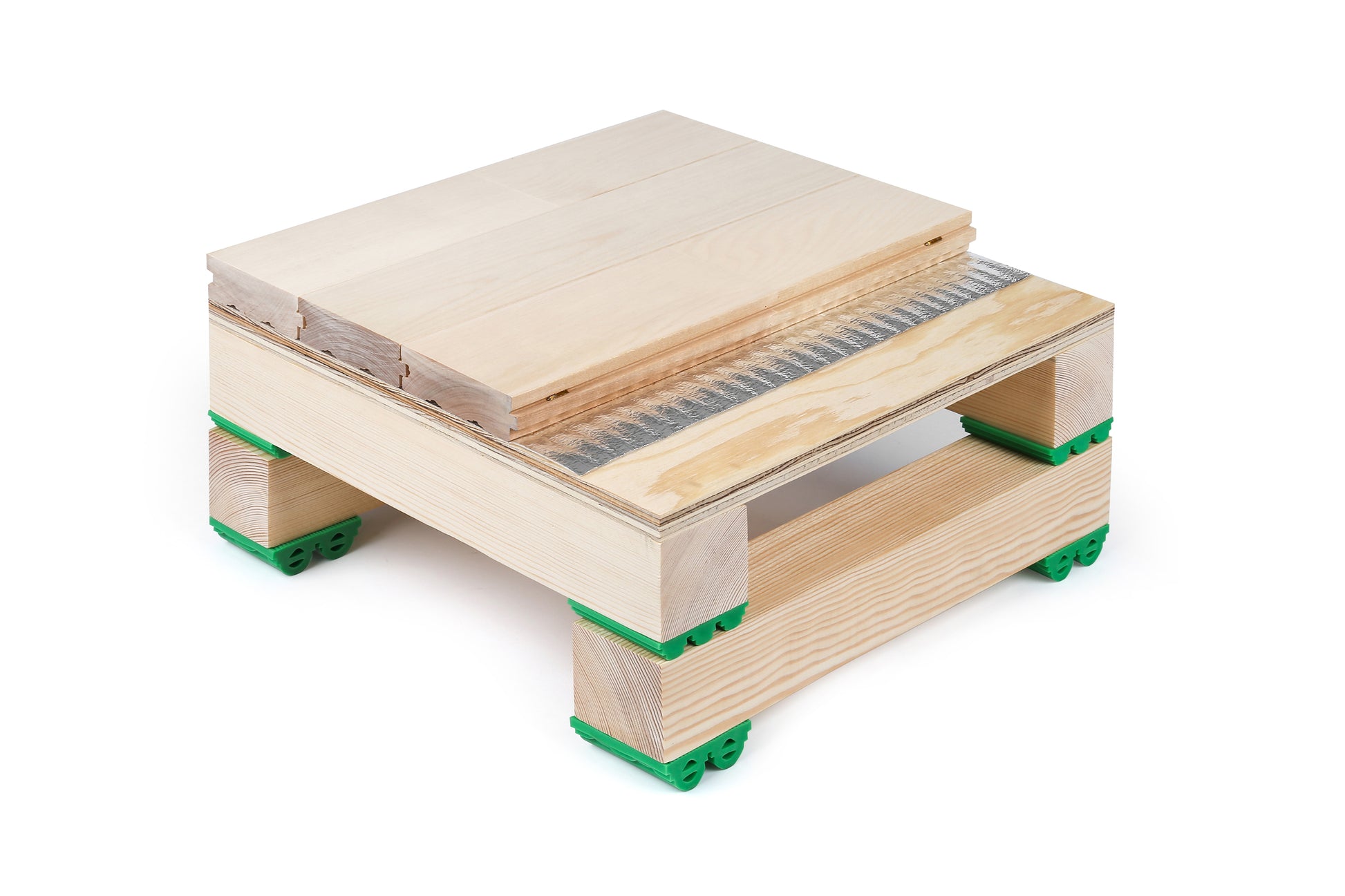

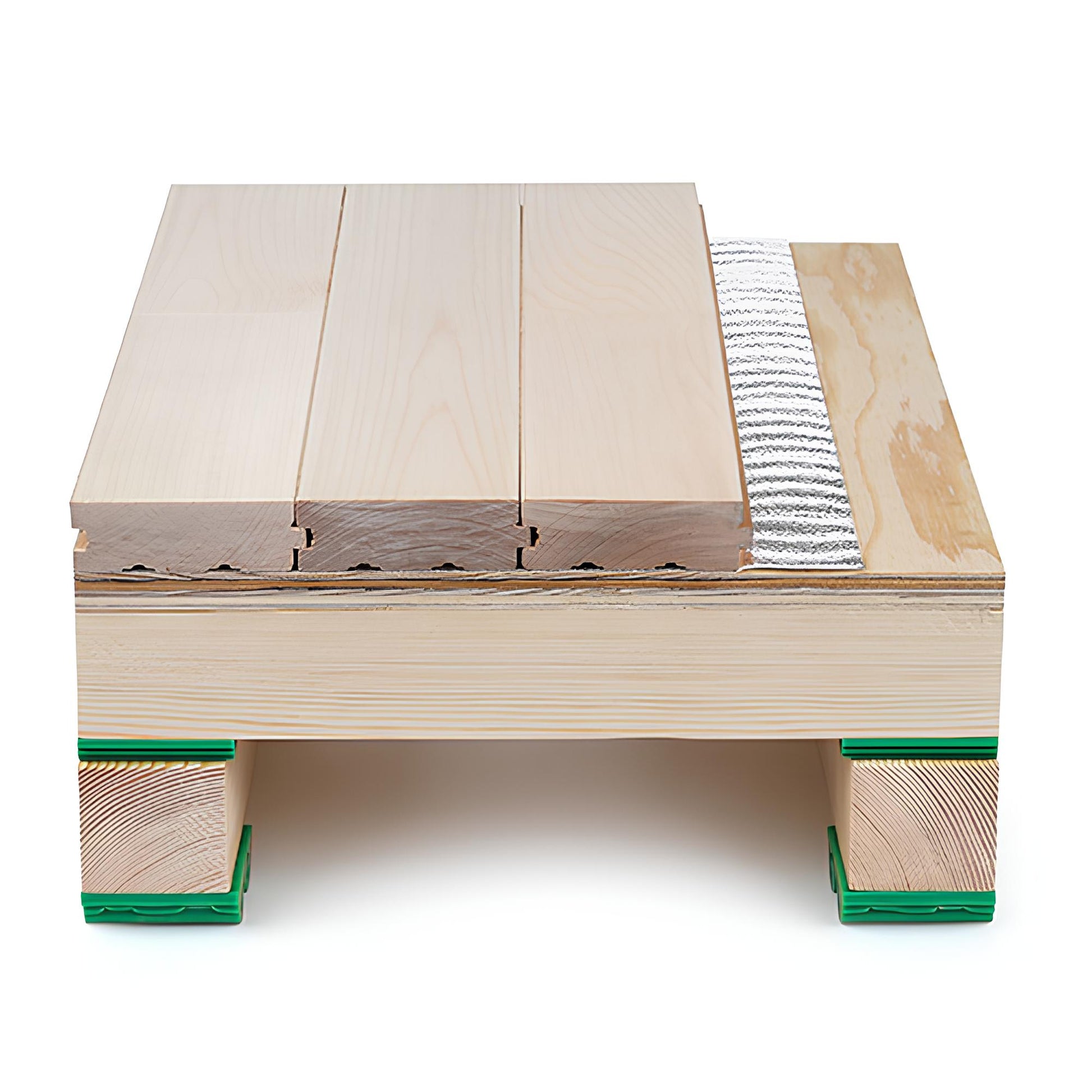

Double-Layer Keel Hardwood Sports Flooring (Double-Pad System)
Double-Layer Keel Hardwood Sports Flooring (Double-Pad System)
Description
A premium permanent hardwood sports floor with two keel levels and two elastic pad layers. Rubber cushioning beneath both the upper and lower keels creates a highly resilient system for demanding indoor courts, while the stabilising subfloor helps distribute loads and maintain consistent performance. Choose Hardwood L1, L2 or L3 to match the required playing level and finish.
Benefits
- Enhanced cushioning: Two elastic pad layers provide a more cushioned response and strong player protection.
- Stable double framework: Two treated pine keel levels reinforce the structure and distribute loads.
- Consistent play: Designed for dependable shock absorption, ball rebound and controlled grip.
- Protected construction: A PE moisture barrier and treated pine components help resist moisture-related damage.
- Custom appearance: Custom colours, court markings and logos are available.
Technical Info
- Installation type: Fixed indoor sports floor
- Hardwood L1: 22 mm Grade A solid maple-birch
- Hardwood L2: 22 mm Grade A solid maple
- Hardwood L3: 22 mm solid Canadian maple
- Surface finish: UV-cured anti-slip and wear-resistant coating
- Moisture barrier: PE aluminium-foil film or non-woven fabric
- Stabilising subfloor: 12 mm pine rough board
- Keels: Two levels of treated pine, each 40 or 50 mm high × 50 mm wide
- Cushioning: Natural-rubber pads beneath the upper and lower keel levels; 10, 15, 18 or 20 mm depending on project requirements
- Shock absorption: ≥53%
- Ball rebound: ≥90%
- Coefficient of friction: 0.4–0.6
- Fire classification: B1
- Formaldehyde emission: E1
- VOC limits: Benzene ≤10 µg/m³; toluene ≤20 µg/m³; xylene ≤20 µg/m³; TVOC ≤100 µg/m³
- Lifespan: 10+ years
Couldn't load pickup availability

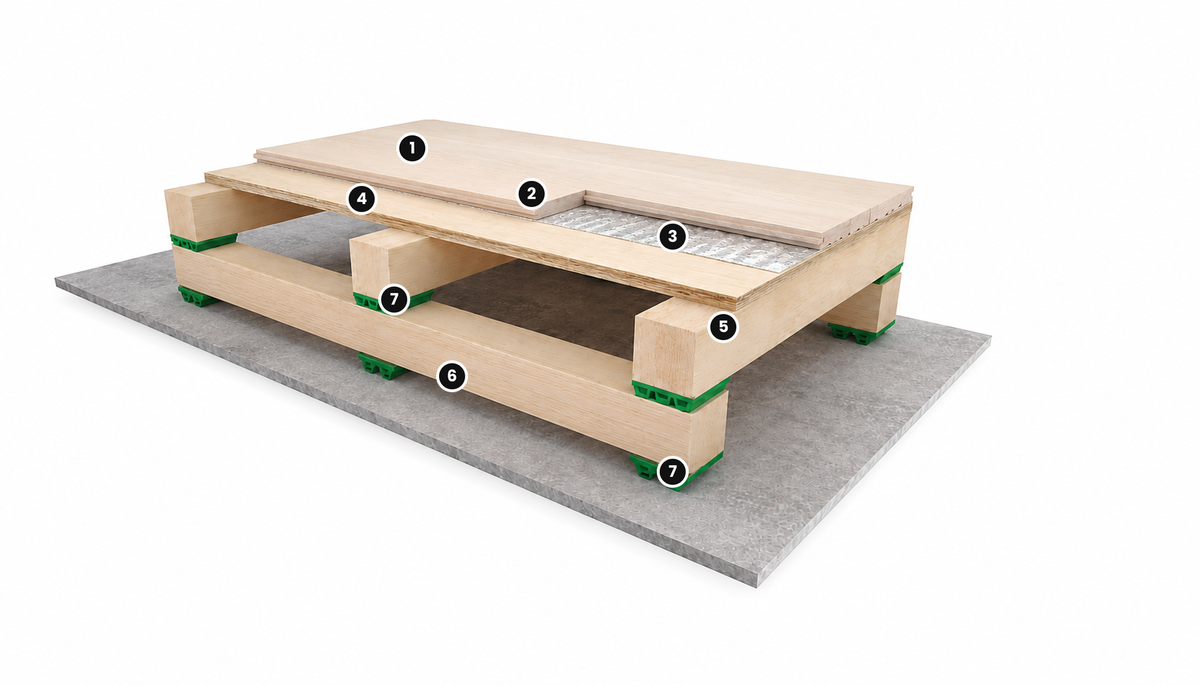

Floor Structure
- Anti-Slip, Wear-Resistant UV Finish
- Solid-Wood Sports Flooring Panels
- PE Moisture Barrier
- Stable Pine Rough Board
- Upper Anti-Corrosion Pine Keels
- Lower Anti-Corrosion Pine Keels
- Damping Rubber Pads — between the keel levels and beneath the lower keels
Frequently Asked Questions
What makes the Double-Layer Double-Pad system different?
Two treated pine keel levels and natural-rubber pads beneath both keel levels create the most cushioned and resilient response among the fixed hardwood systems, with a stable framework for demanding indoor courts.
Is this a fixed or portable hardwood floor?
This is a permanent, fixed sports-floor system. Its keel structure, cushioning, stabilising board and hardwood surface are installed as one integrated floor and are not intended for routine removal. For a relocatable system, choose Portable Hardwood Sports Flooring.
Which hardwood surfaces are available?
Choose Hardwood L1 with 22 mm Grade A solid maple-birch, Hardwood L2 with 22 mm Grade A solid maple or Hardwood L3 with 22 mm solid Canadian maple. The best option depends on the required appearance, playing level and project specification.
Which sports and venues is this floor suitable for?
It is designed for indoor basketball and multipurpose sports facilities, including schools, clubs, training centres, sports halls and arenas. Court dimensions, game lines and competition requirements are confirmed for each project.
Can the colours, court markings and logos be customised?
Yes. Surface colours, game lines and logos can be planned around the required sports, branding and venue layout.
What should be confirmed before ordering and installation?
Please provide the court dimensions, intended sports, preferred Hardwood L1, L2 or L3 surface, venue and delivery location, and any required colours, markings or logos. The base should also be assessed for levelness, moisture, construction height, transitions and equipment locations before installation.
