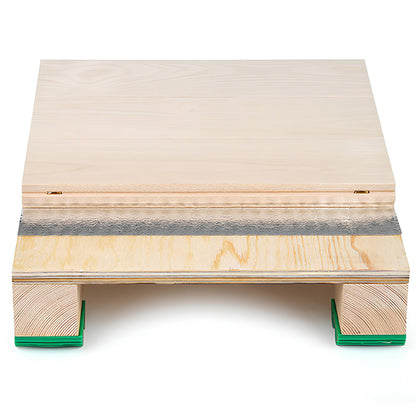

The Single-Layer Keel

Hardwood Sports Floor

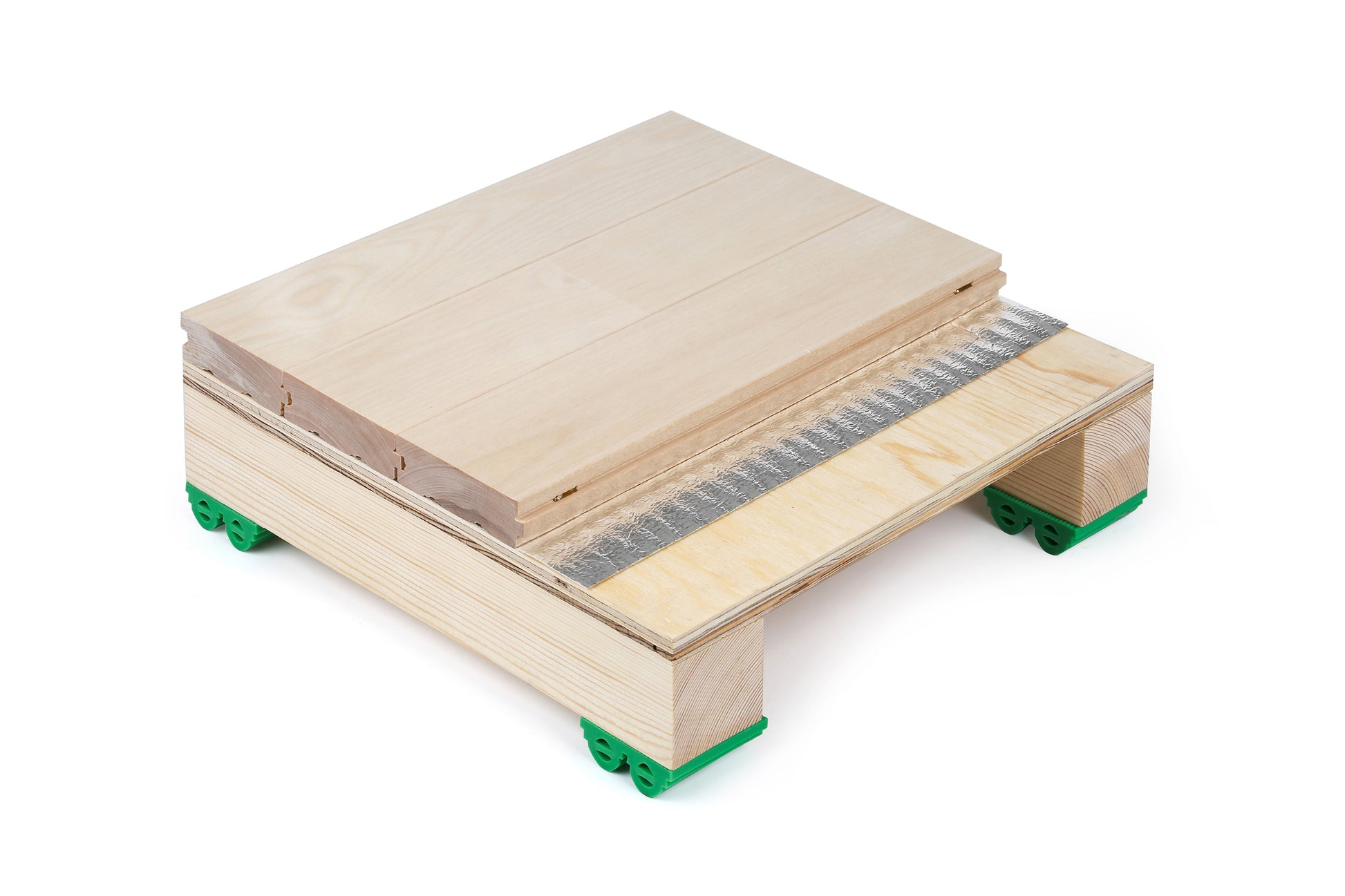

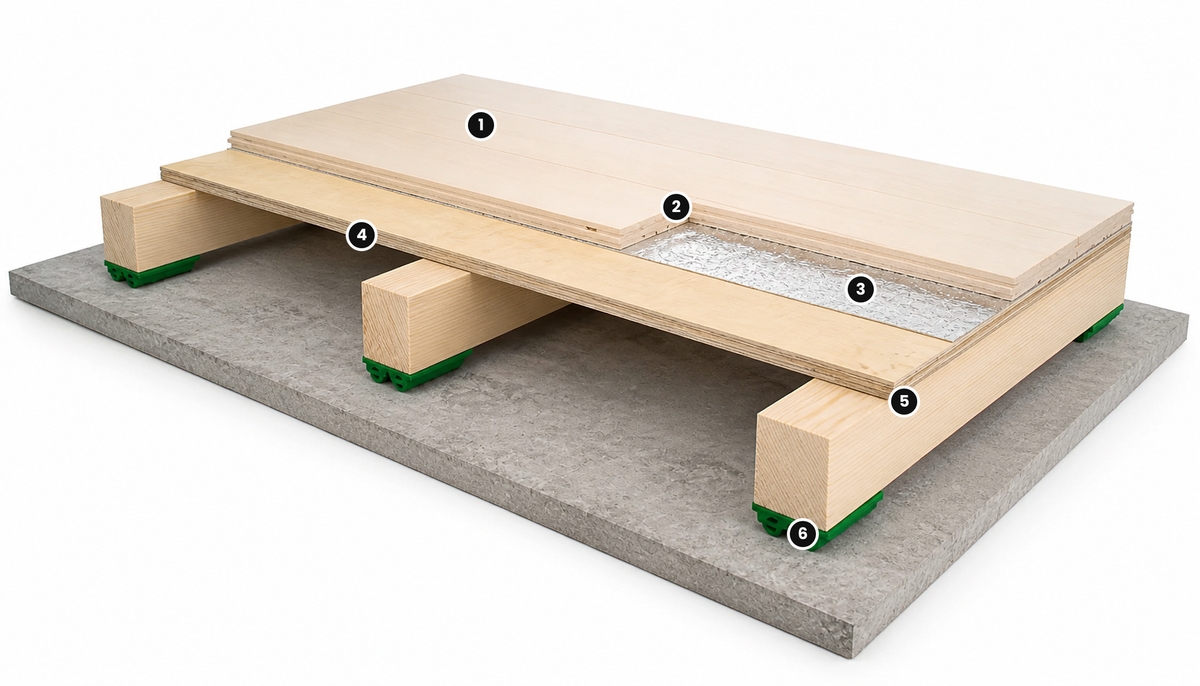

Product Structure

From top to bottom:

1. Anti-skid and wear-resistant UV paint
2. Maple, birch or maple solid-wood panels
3. PE moisture barrier
4. Stable rough board
5. Anti-corrosion pine keel
6. Damping rubber pads

Product Features

• Directly harvested logs, natural and environmentally friendly
• Strictly controlled panels to ensure stability and prevent deformation
• More durable against moisture and corrosion
• Safety protection and excellent sports performance
• Color-paint process and personalized design

Performance Parameters

• Shock absorption: ≥53%
• Ball rebound: ≥90%
• Coefficient of sliding friction: 0.4-0.6
• Fire-proof level: B1
• Formaldehyde emission: E1
• Benzene release: ≤10 µg/m³
• Toluene release: ≤20 µg/m³
• Xylene release: ≤20 µg/m³
• TVOC release amount: ≤100 µg/m³
• Service life: 10 years

Available Series

• M1
• M2
• M3
• M5
• M6
• M7
• M8
• M9

Technical Parameters

Surface Paint

Material: Anti-skid and wear-resistant UV paint.

Surface Flooring

Material: Maple, birch or oak.

Specifications:

• Thickness: 20-22 mm
• Width: 60-80 mm per individual board
• Length: 1800 mm

Moisture-Proof and Noise-Reducing Layer

Material: PE aluminium-foil film or non-woven fabric.

Specification: 0.5-1 × 1200 × 100000 mm.

Stable Layer

Material: Pine rough board.

Specification: 1220 × 2440 × 12 mm.

Keel

Material: Pine wood.

Specifications:

• Height: 40 or 50 mm
• Width: 50 mm

Cushion

Material: Natural rubber.

Available thicknesses:

• 10 mm
• 15 mm
• 18 mm
• 20 mm

Organization and Approval Logos Shown

• FIBA Approved Equipment
• FIBA 3x3
• BWF
• ITTF
• World Athletics
• IHF
• ITF Classified Court Pace 5 - Fast
